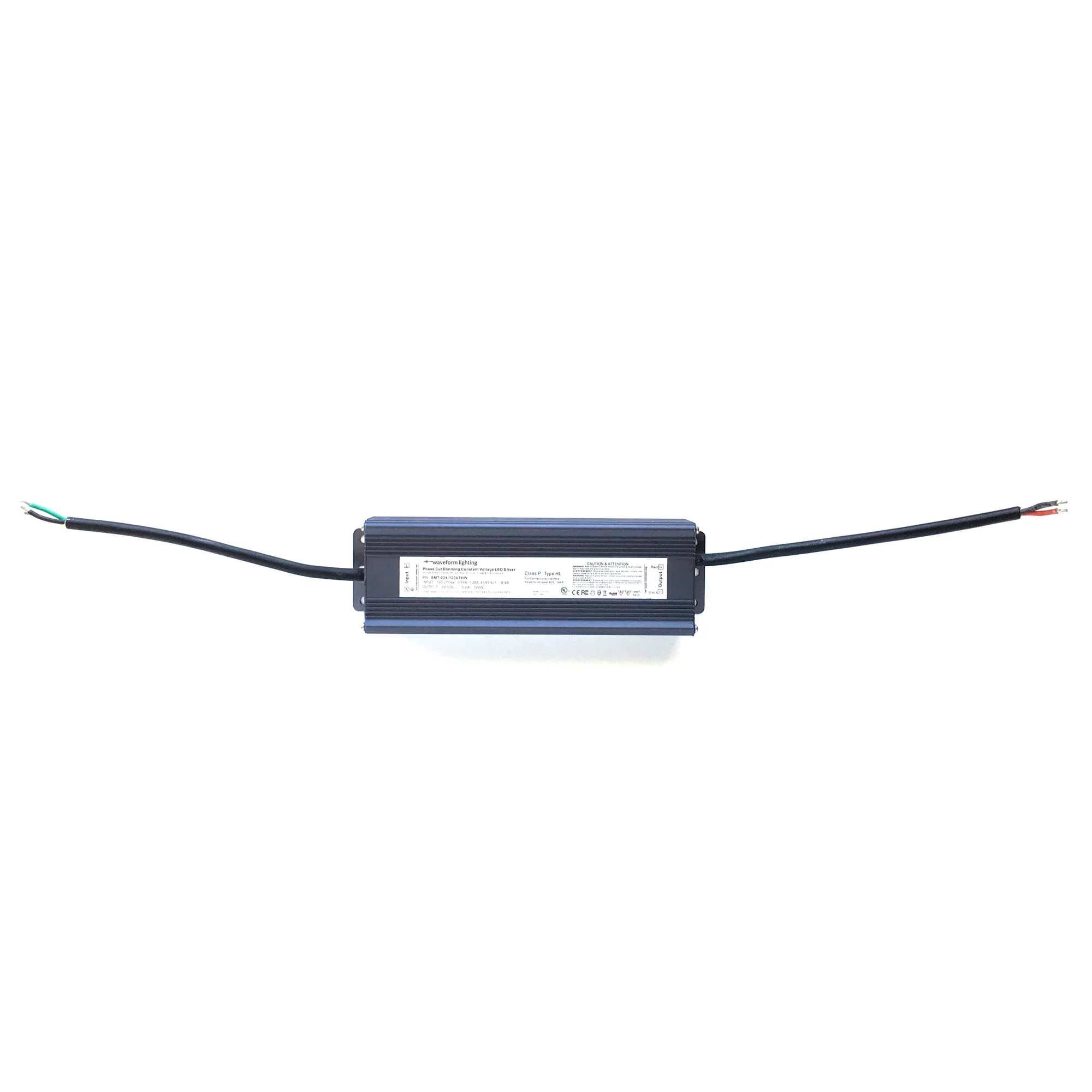

CENTRIC SERIES™ Dimmable Power Supply for LED Strip
- 100 - 277 V AC input, compatible with phase-cut wall dimmers, including TRIAC (incandescent / forward phase), electronic low voltage (ELV / reverse phase), and magnetic low voltage dimmers
- 12V or 24V DC constant voltage output, with reduced brightness level corresponding to input dimming signal from wall-dimmer
- Up to 120 W power output (120W/10A for 12V, and 96W/4A for 24V to meet Class 2 rating)
- UL Listed (E508692)
- Input: Live (Black), Neutral (White), Ground (Green), 18 AWG wires
- Output: V+ (Red), V- (Black), 16 AWG wires
- Dimmable to 0% for most dimmer models (see below for complete list)
- 100 - 277 V AC input, compatible with phase-cut wall dimmers, including TRIAC (incandescent / forward phase), electronic low voltage (ELV / reverse phase), and magnetic low voltage dimmers
- 12V or 24V DC constant voltage output, with reduced brightness level corresponding to input dimming signal from wall-dimmer
- Up to 120 W power output (120W/10A for 12V, and 96W/4A for 24V to meet Class 2 rating)
- UL Listed (E508692)
- Input: Live (Black), Neutral (White), Ground (Green), 18 AWG wires
- Output: V+ (Red), V- (Black), 16 AWG wires
- Dimmable to 0% for most dimmer models (see below for complete list)
Select Voltage
Select Junction Box
From $87.15
Original: $249.00
-65%CENTRIC SERIES™ Dimmable Power Supply for LED Strip—
$249.00
$87.15Description
- 100 - 277 V AC input, compatible with phase-cut wall dimmers, including TRIAC (incandescent / forward phase), electronic low voltage (ELV / reverse phase), and magnetic low voltage dimmers
- 12V or 24V DC constant voltage output, with reduced brightness level corresponding to input dimming signal from wall-dimmer
- Up to 120 W power output (120W/10A for 12V, and 96W/4A for 24V to meet Class 2 rating)
- UL Listed (E508692)
- Input: Live (Black), Neutral (White), Ground (Green), 18 AWG wires
- Output: V+ (Red), V- (Black), 16 AWG wires
- Dimmable to 0% for most dimmer models (see below for complete list)
